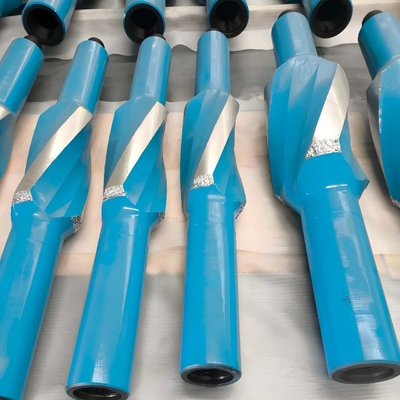

36" Spiral Welded Blade Stabilizer with 11" fishing neck with 8 5/8" Reg. box x 8-5/8 H90 box up

36" Spiral Welded Blade Stabilizer with 11" fishing neck with 8 5/8" Reg. box x 8-5/8 H90 box up
36" Spiral Welded Blade Stabilizer with 11" fishing neck with 8 5/8" Reg. box x 8-5/8 H90 box up

Grote Afbeelding :  36" Spiral Welded Blade Stabilizer with 11" fishing neck with 8 5/8" Reg. box x 8-5/8 H90 box up

Productdetails:
Plaats van herkomst: China
Merknaam: China Brand
Certificering: API 7-1
Modelnummer: 36 "String/Near Bit Stabilizer
Betalen & Verzenden Algemene voorwaarden:
Verpakking Details: Houten behuizing
Levertijd: 20-40 dagen
Betalingscondities: T/t
Contact

36" Spiral Welded Blade Stabilizer with 11" fishing neck with 8 5/8" Reg. box x 8-5/8 H90 box up

beschrijving
Materiaal: 4145H Model: Gelaste messen
Moeilijkheden: HF1000-HF5000 Verbinding: NC 50
Markeren:

36 inch spiral welded blade stabilizer

,

drilling stabilizer with fishing neck

,

stabilizer with 8-5/8 H90 box

36" Near Bit/String Spiral Welded Blade Stabilizer with 11" fishing neck with 8 5/8"Reg. box x 8-5/8 H90 box up
Product Specifications
Attribute Value
Material 4145H
Model Welded Blades
Hard Facing HF1000-HF5000
Connection NC 50
Product Description

36" Near Bit/String Spiral Welded Blade Stabilizer featuring an 11" fishing neck with 8 5/8" Reg. box connection and 8-5/8 H90 box up configuration.

Detailed Specifications
Attribute Value
Stabilizer Type Near Bit Spiral Welded Blade
OD 36 inches
Fishing Neck 11 inches
Connection 8 5/8" Reg. box x 8-5/8 H90 box up
APPLICATION
We supplies a complete line of downhole drilling stabilizers to increase rate of penetration and control hole deviation problems. All these stabilizers (including spiral blade, straight blade, integral blade, welded blade, sleeve-type, and stainless steel nonmagnetic types) are designed to meet or exceed the strictest quality control and quality assurance standards. All alloy stabilizers are manufactured from AISI 4145H modified heat-treated steel for a wide variety of configurations and hole sizes

FIVE KINDS OF HARD FACING
1. HF1000: Crushed tungsten carbide inserts(TCI) held in a nickel bronze matrix
2. HF2000: Trapezoidal tungsten carbide inserts(TCI) held a sintered carbide nickel bronze matrix
3. HF3000: Embedded with trapezoidal tungsten carbide inserts (TCI) spray welded on the blades
4. HF4000: Tungsten carbide inserts (button type)are pressed tightly in the holes of blades at room temperature
5. HF5000: This oxy-acetylene process pplies tough molten carbide particles of varying sizes in a nickel chrome matrix

TECHNICAL DATASHEET
36" Spiral Welded Blade Stabilizer with 11" fishing neck with 8 5/8" Reg. box x 8-5/8 H90 box up 0
